160A - ATS - 1604E000

160A – ATS – 1604E000

£4,620.00

IN STOCK

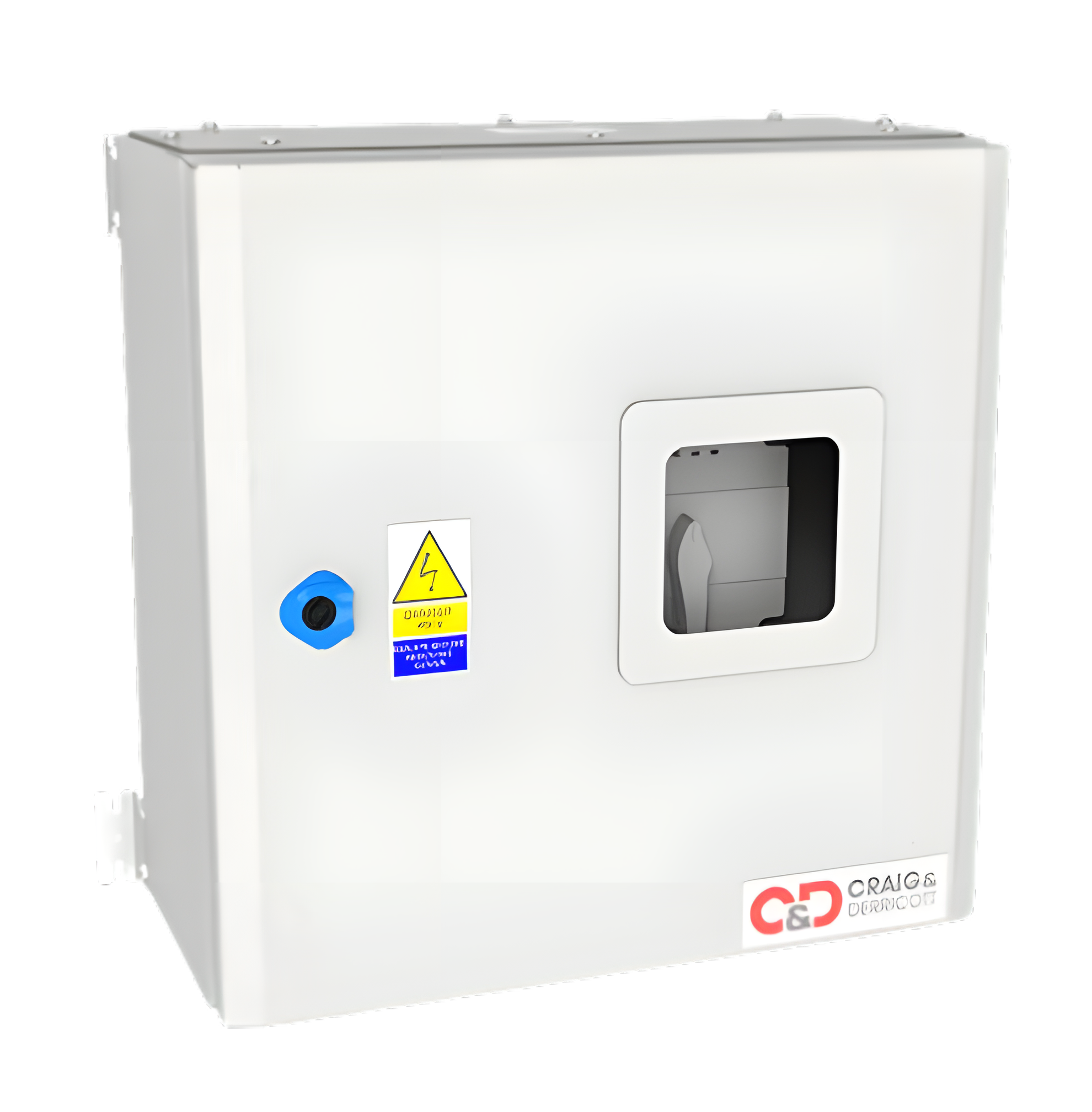

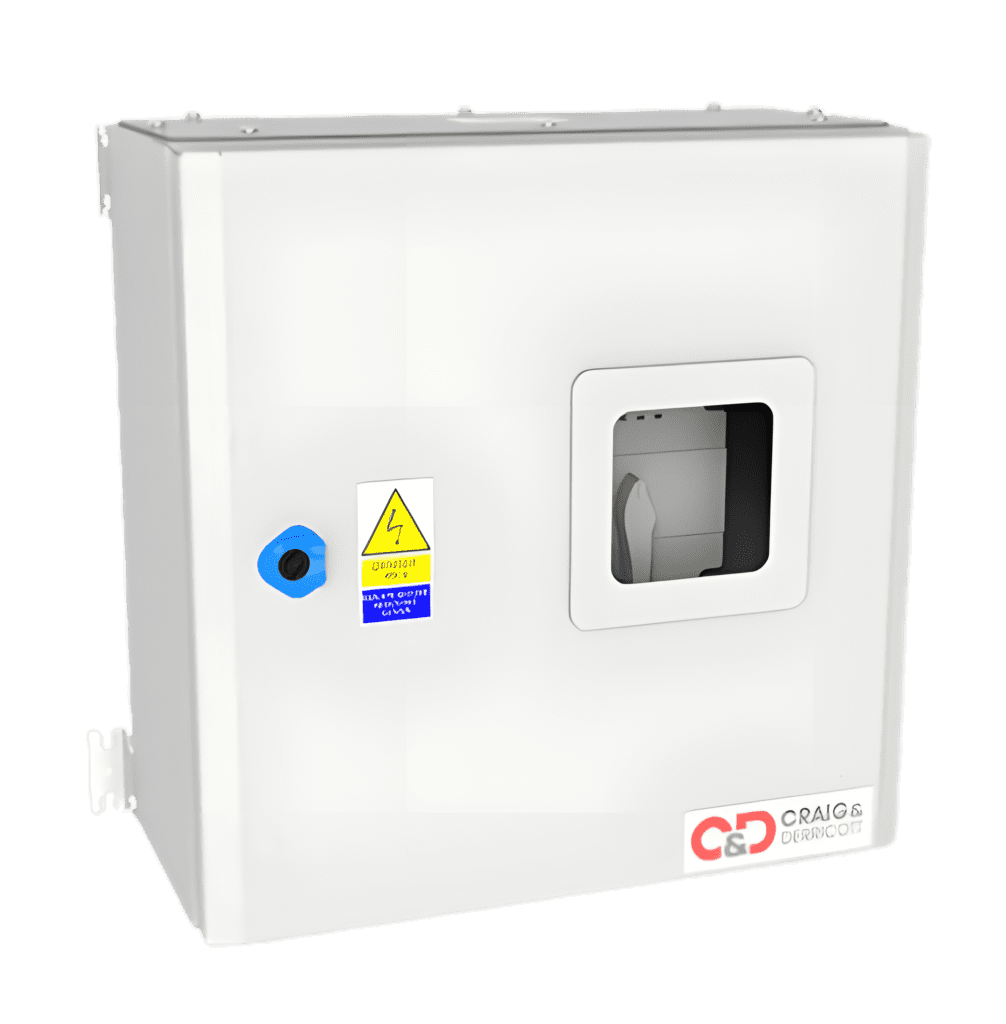

Single-line No-break bypass Automatic Transfer Switch c/w Isolators

Manufacturer: Craig And Derricott

Availability: 5 in stock (can be backordered)

Categories: ,
Guaranteed Safe Checkout

Buy the 160A – ATS – 1604E000 Panel from a UK trusted site. More ATS Panels available in our shop

IN STOCK

VAT INCLUDED

pdf
VIEW DATASHEET

Supplied in an IP65 mild steel enclosure with a light grey (RAL 7035) paint finish, each enclosure comes standard with a removable gland plate. Each ATS unit comes with mimic terminals for easy connection of a remote indication panel. Each unit also includes Modbus communication and Volt-Free Status Relays in order to connect to the BMS (building management system)installed within the building.

Manufacturer

Craig And Derricott
Specs

AC31 Current Rating : 160A
AC33 Current Rating : 160A
Class of Equipment : PC
EMC Environment : B
Insulation Voltage (Ui) : 690V
Motor Power Factor: 88.7kW
Impulse Withstand (Uimp) : 8kV
Conditional S/C Current (Icc): 50kA
Short-Time Withstand (Icw): 10kA, 200ms
Form of Separation: Form 3
Max. Cable Capacity : 95mm²
Cable Access : Top & Btm Entry & Exit
IP Rating : IP65 (Not weatherproof)
Height : 600mm
Width : 600mm
Depth : 300mm
Gross Weight : 65.4Kg
Dimensions

Height : 600mm
Width : 600mm
Depth : 300mm
