Craig & Derricott Component
125A – ATS – 1252E530
Part No. 1252E530
In Stock — Ready to Dispatch
Ships within 1–3 days
£942.00
(VAT Included)
Availability: 5 in stock (can be backordered)
Supplied through our partnership with TGS — the UK's leading Rehlko supplier. All parts are genuine OEM components.
Purchase the 125A - ATS - 1252E530 Panel from a UK trusted site. More ATS Panels available in our shop
IN STOCK
VAT INCLUDED
VIEW DATASHEET

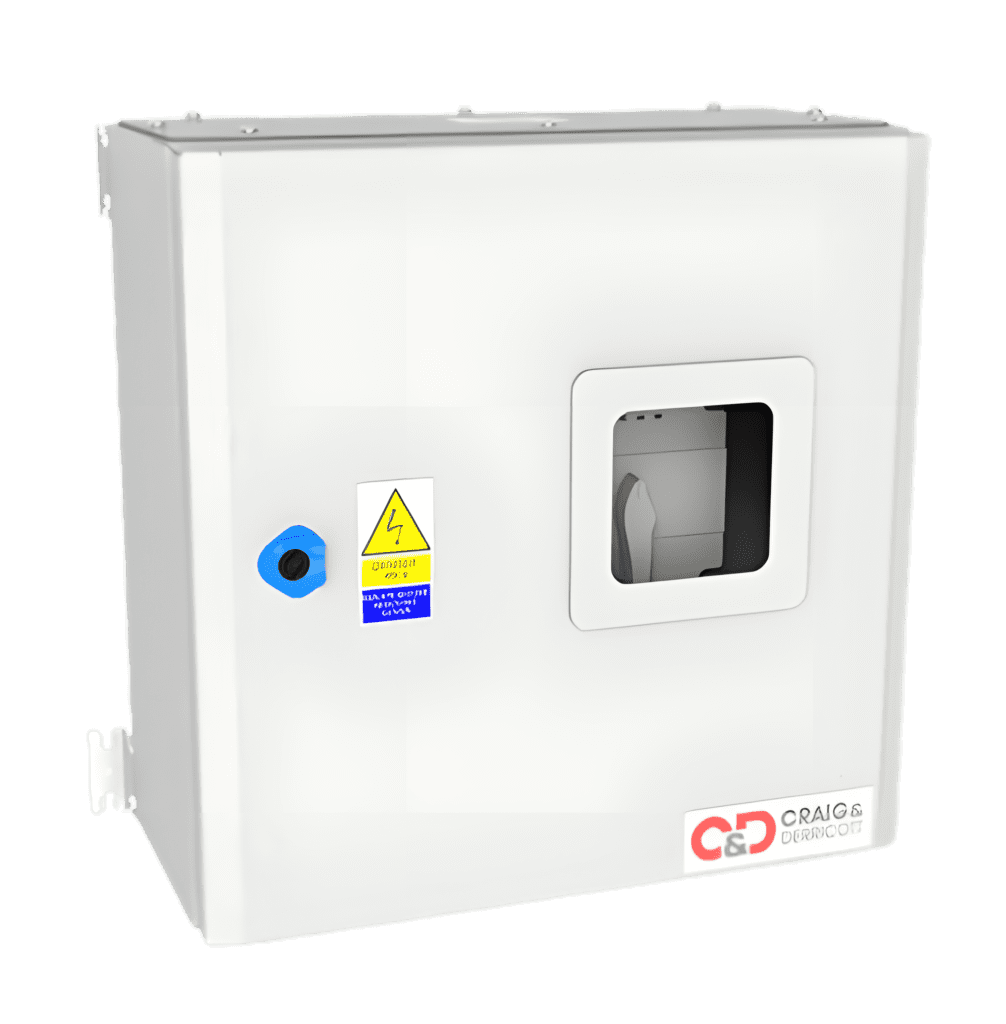

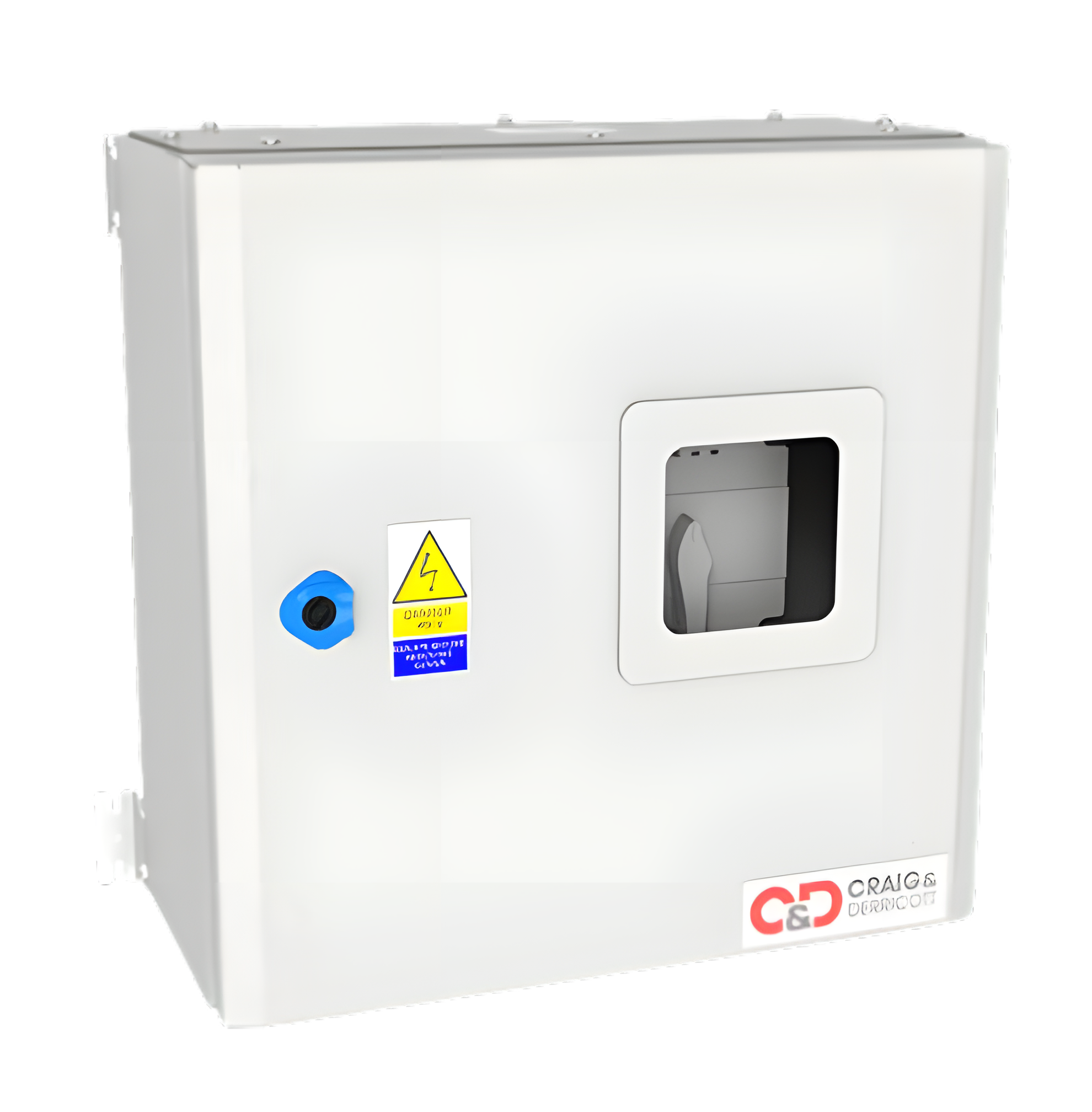

Supplied in an IP65 mild steel enclosure with a light grey (RAL 7035) paint finish, each enclosure comes standard with a removable gland plate. Each ATS unit comes with mimic terminals for easy connection of a remote indication panel. Each unit also includes Modbus communication and Volt-Free Status Relays in order to connect to the BMS (building management system)installed within the building.
VIEW DATASHEET
Supplied in an IP65 mild steel enclosure with a light grey (RAL 7035) paint finish, each enclosure comes standard with a removable gland plate. Each ATS unit comes with mimic terminals for easy connection of a remote indication panel. Each unit also includes Modbus communication and Volt-Free Status Relays in order to connect to the BMS (building management system)installed within the building. | Manufacturer | Craig And Derricott |
| Specs | AC31 Current Rating : 125A AC33 Current Rating : 125A Class of Equipment : PC EMC Environment : B Insulation Voltage (Ui) : 690V Motor Power Factor: 69.3kW Impulse Withstand (Uimp) : 8kV Conditional S/C Current (Icc): 50kA Short-Time Withstand (Icw): 10kA, 200ms Form of Separation: Form 3 Max. Cable Capacity : 35mm² Cable Access : Top & Btm Entry & Exit IP Rating : IP65 (Not weatherproof) Height : 500mm Width : 500mm Depth : 200mm Gross Weight : 73.4Kg |
| Dimensions | Height : 500mm Width : 500mm Depth : 200mm |
| Compliant Standards | BS EN 60947-1 BS EN 60947-3 BS EN 60947-5-1 BS EN 60947-6-1 BS EN 60529 BS EN 61439-1 BS EN 61439-2 |
| Low Voltage Directive | Low Voltage Directive - (EU) 2014/35 Issue 9.00 : 27/03/2025 |
| Part Number | 1252E530 |
